Name: Stainless Steel Coils
Brand: Rajeshwar Metal & Engg Pvt Ltd

Stainless Steel Coil Supplier & Manufacturer in India

Rajeshwar Metal & Engg Pvt Ltd is a leading supplier of premium quality stainless steel coils, offering products rolled into desired forms as per specific client requirements. Stainless steel coils are widely used across the steel industry and are available in various dimensions and finishes to suit diverse applications.
Our ASTM A240 stainless steel coils are manufactured using advanced processing techniques, traditionally involving slab conversion through Z mill rolling. These coils are typically produced in wide widths of approximately 1250 mm, commonly referred to as mill edge coils. Further processing such as slitting enables these wide coils to be converted into multiple narrower strands, forming customized coil batches as required.

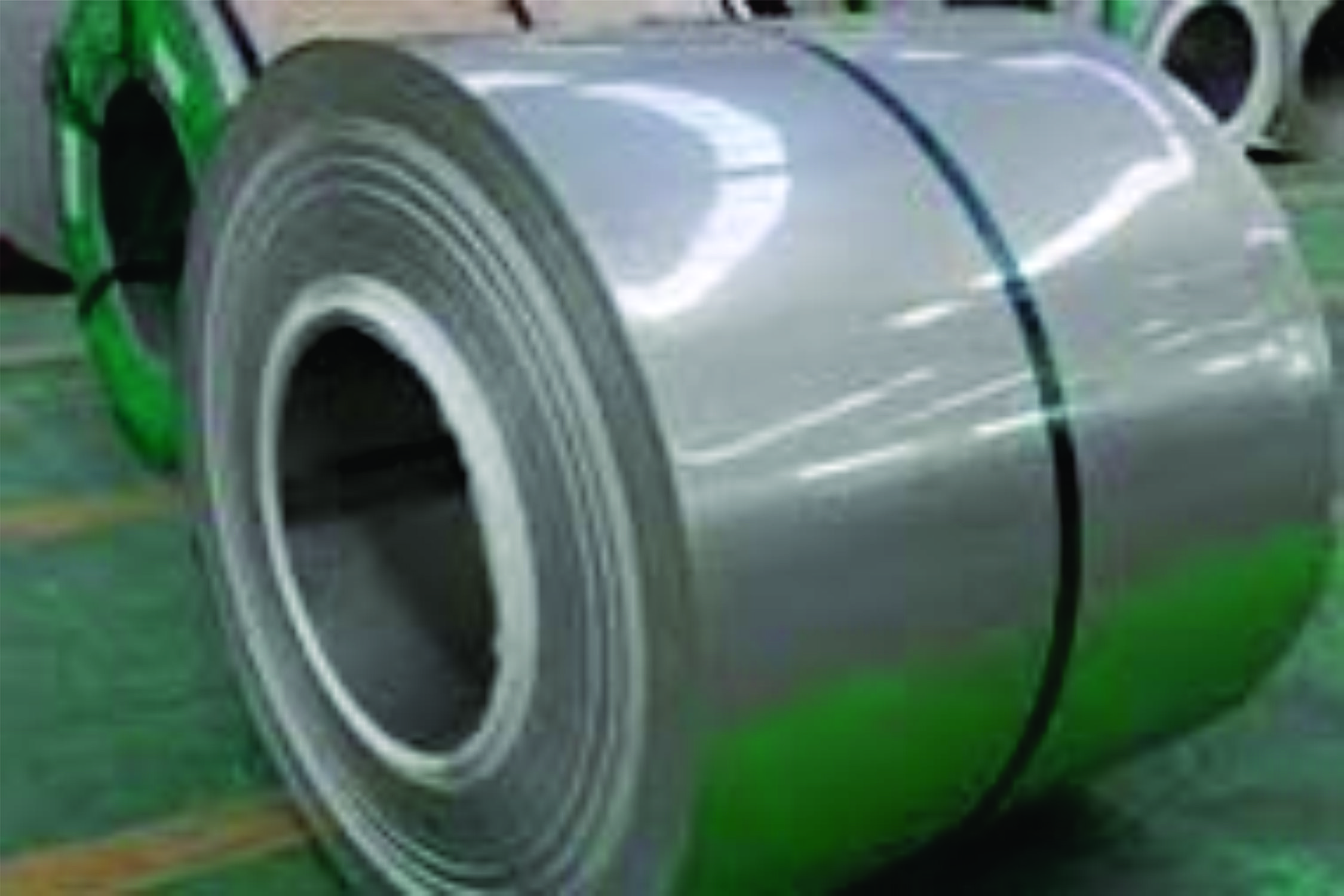

1mm thickness SS coil

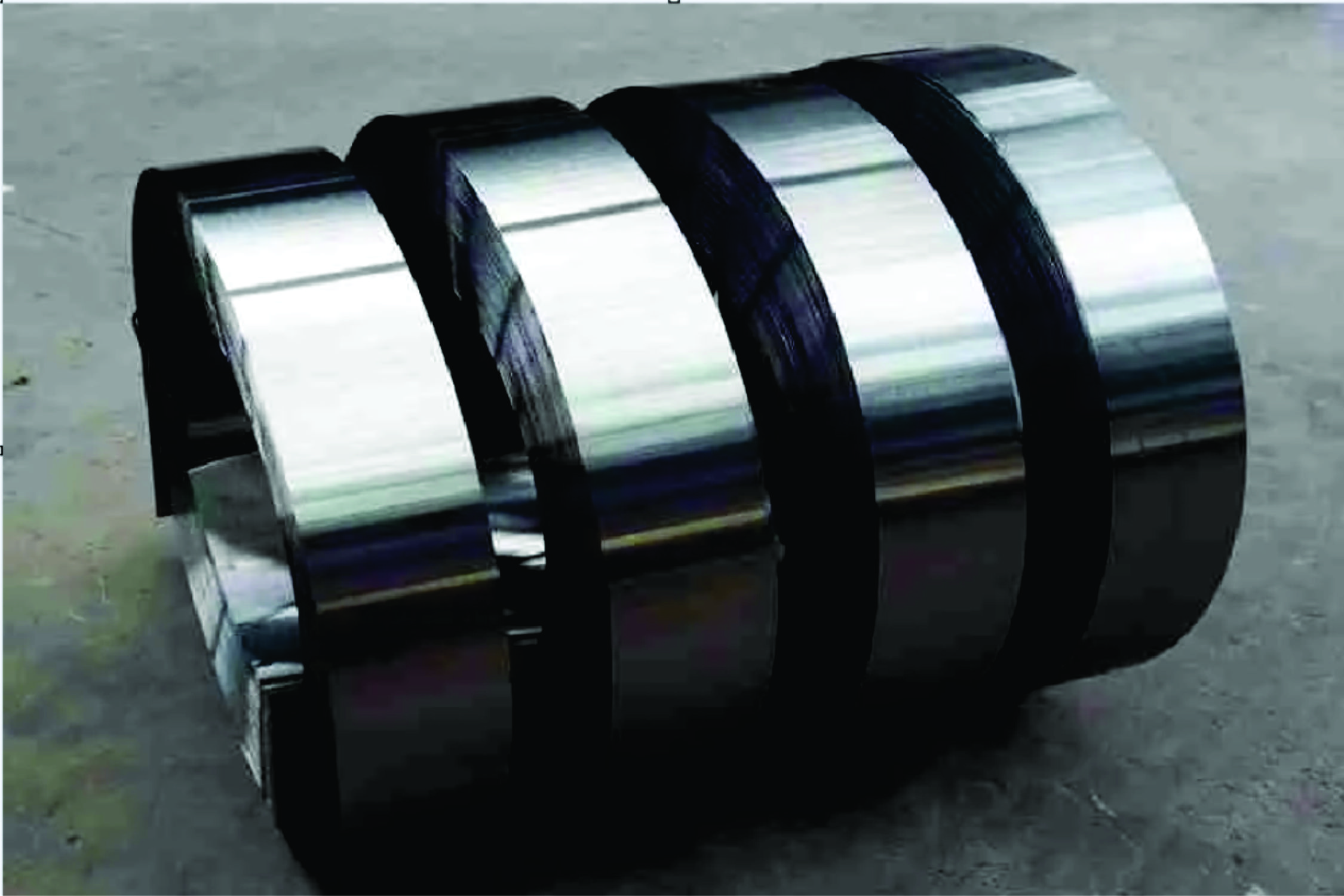

Slitting Coils

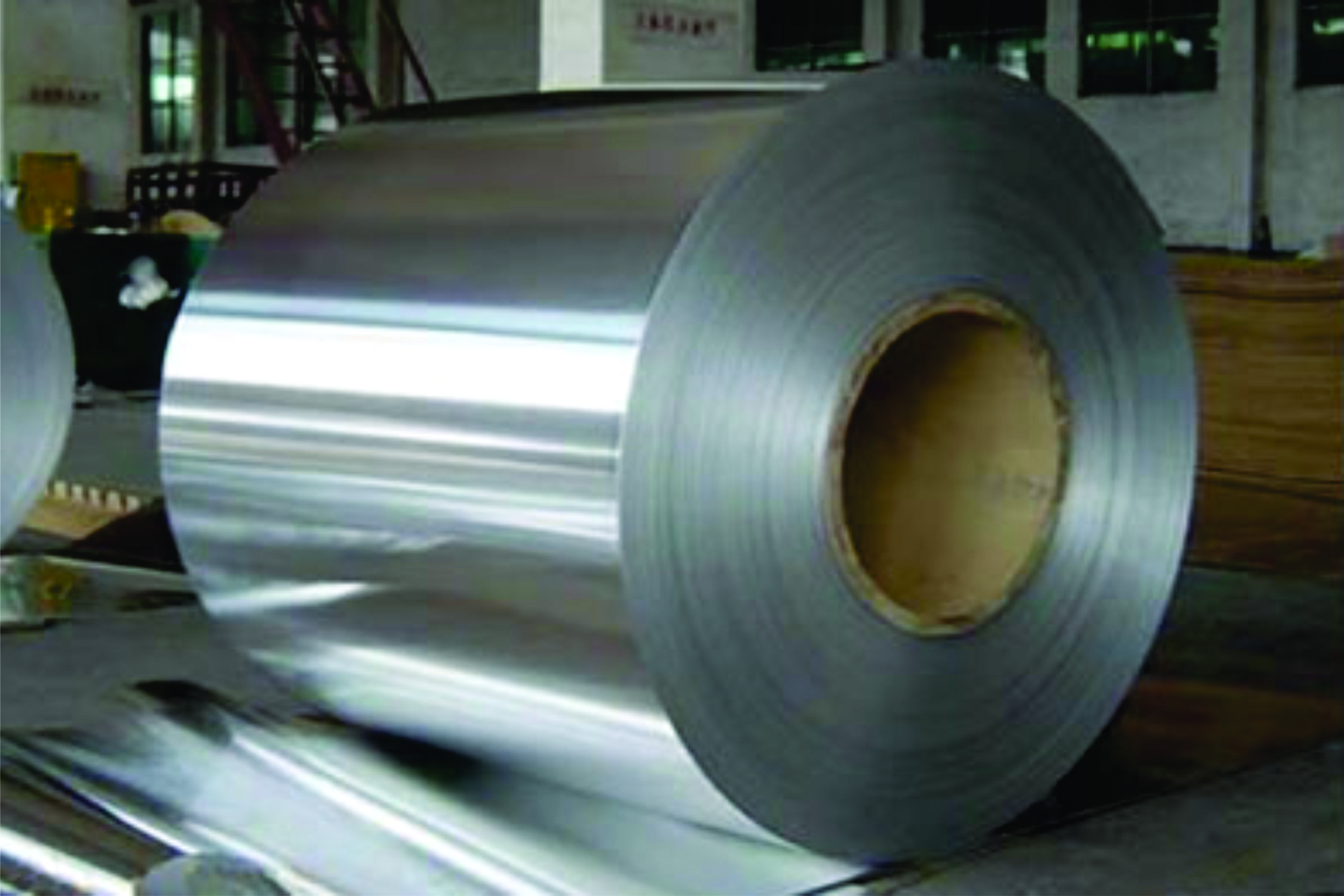

DIN SS coil

Specification

Company Name	Rajeshwar Metal & Engg Pvt Ltd
Item	Stainless Steel Coils (Hot Rolled & Cold Rolled)
Inner Diameter	610 +0 / -5 mm
Width	610 mm to 2000 mm
Thickness	2.5 mm to 10.0 mm
Length	2000 mm, 2440 mm, 3000 mm, 5800 mm, 6000 mm, etc.
Material Grades	SS 202, SS 304, SS 316, SS 321, SS 310, SS 410, SS 420, SS 416
Surface Finish	2D, 2B, BA, No.1, No.4, No.8, 8K, Hairline, Brush, Mirror, Etching, Checkered, Embossed, Sand Blast, etc.
Standards	ASTM A240, ASTM A167, JIS G4304-2005, GB/T 3280-2007, EN 10088-2-2005
Origin	Indian, European, Japanese, US, Korean, Thailand, Taiwan Origin

SS Coil Stock Sizes

Type	Width	Thickness	Inner Diameter	Surface Finish
SS Hot Rolled No.1 Coils	610~2000 mm	2.5~10.0 mm	610 +0/-5 mm	2D, 2B, BA, No.4, No.3,No.5, HL, SB,
SS Cold Rolled Coils	610~1524 mm	0.3~3.0 mm	610 or 508 +0/-5 mm	2D, 2B, BA, No.4, No.3,No.5, HL, SB,
Pre-painted Stainless Steel Coils	130-1524mm	0.4-3.0mm	-	2B, 2D

Our stock range

Sizes	Availability
0.4mm	√
0.5mm	√
0.8mm	√
1mm	√
1.2mm	√
1.6mm	√
2mm	√
3mm	√
4mm	√
5mm	√
6mm	√
8mm	√
10mm	√
12mm	√
16mm	√
20mm	√
25mm	√

Stainless Steel HR Coil Unit Weight Limitation

Unit : ton	5 feet	1M	3 feet	4 feet
300 series	-	-	-	3~22
300 series	3~23 (≦5.0) / 27 (>5.0)	3~18	3~17	3~22
Remark	Both Cut Edge and Mill Edge are available

SS CR Coil Dimension and Shape Tolerance

Thickness (mm)	1000 ≤ Width < 1250 (mm)	630 ≤ Width < 1000 (mm)	1250 ≤ Width < 1550 (mm)
0.40 ≤ T < 0.60	±0.035	±0.035	-
1.25 ≤ T < 1.60	±0.060	±0.055	±0.060
1.60 ≤ T < 2.00	±0.070	±0.065	±0.080
0.25 ≤ T < 0.40	±0.035	±0.030	-
0.80 ≤ T < 1.00	±0.050	±0.040	±0.050
0.60 ≤ T < 0.80	±0.040	±0.040	-
1.00 ≤ T < 1.25	±0.055	±0.050	±0.060

**Width Tolerance**
Cut Edge	Mill Edge
Aim -0 / +1	Aim ±10

Mill Edge	Surface Finish	Cut Edge
10 mm	2B / BA	5 mm
20 mm	2D	10 mm
